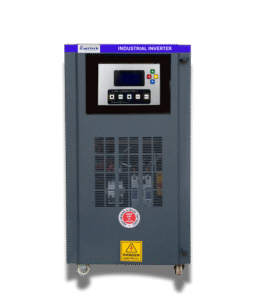

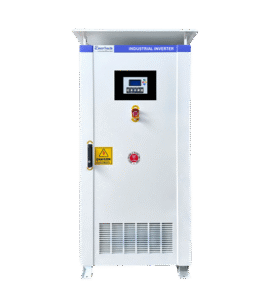

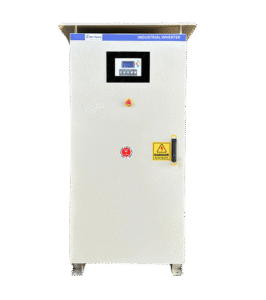

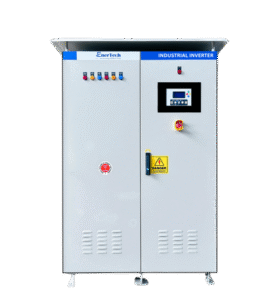

Industrial Inverter

Range 5KVA to 300KVA
Phase 1 Phase and 3 Phase
Display 32 bit DSP based design
VDC models Low VDC models up to 96V/120V available
Overloading Overloading of 200% to handle surge currents
Power Factor IGBT rectifier with PF >0.9
Frequency 50Hz: 60Hz: 400Hz
Drawing Ready documents for SLD, GA, BOM & schematic

Description

Increased power shortage and shutdown have made Industrial Inverters an essential factor at every place including offices, multi-storied buildings, manufacturing plants, shopping malls, and so on. Enertech Group based in Pune and Mumbai, India offers highly reliable Industrial Inverters ensuring emergency rescue devices for lift usage in spite of electricity failure.

The system always remains alerted to sense a power failure and starts automatically without requiring a manual start. Enertech Group a leading Industrial inverter supplier in India has user-friendly, compact in size, and can be tailor-made to suit particular sites.

Enertech Industrial Inverter has high capacity power generation systems that are capable of running lift/elevators, 3 phase operated critical CNC machines, and many more 3 phase high power applications. When the electricity is available the Lift is directly connected to the main power and only a small portion of the main supply is used for charging the storage batteries. In the event of an electricity failure, the lift inverter automatically senses the power failure and generates AC power from the batteries.

This is carried out within few seconds ensuring that the lift remains without power for a few seconds only. Once the main supply is resumed, the lift is switched over to it. This cycle continues again during the next power failure. The battery bank has the capacity to stand up to 8 to 10 Hours. The common lighting load such as a staircase, parking can also be connected to the system.

Industrial Inverter is 100% eco-friendly and completely pollution-free as they do not emit harmful smoke or gas that affects the environment. It is highly reliable, does not generate noise, and can be custom created as per the rules and regulations, making it a preferred backup product.

Many other names like emergency rescue devices are products that do the same function only to stop the elevator at the immediate next floor and opening the doors. This is also a major requirement in many parts of India, UAE and other African countries.

Enertech Lift UPS India solutions, a highly reliable alternative for power generation in industries and domestic apartments have precise output voltage, a better sine waveform, and accurate frequency. This lift inverters in India is a specially designed unit that is very consistent, flexible, and easily adaptable. Enertech offers lift UPS Systems in various models and capacities for different applications. Enertech is the premier supplier of Industrial Inverter in India.

Features

The main features of the Enertech Lift Inverter are:-

  • Microcontroller-based design.
  • Has PFC battery charger to save electricity up to 50%.
  • Has more than 85% of inverter efficiency.
  • Has less maintenance and eco-friendly as pollution-free.
  • Different models are available in single-phase and three-phase.
  • Have alarms for easy identification and LCD display for all parameters.
  • It has a single card-controlled system.
  • IGBT-based design with the complete automatic changeover.
  • Distinctive Features.
  • Change over.
  • Galvanic Isolation.
  • Double conversion.
  • Priority Selection.
  • Customizable as per requirement.
  • Suitable for all types of loads.
  • Selectable priority SBG/SGB.
  • In-depth Metering.
  • GFM levels are selectable 0/25/50/75/100.
  • The unity power factor for grid charging.
  • Optional Touchscreen.

Applications

1. Passenger lifts.
2. Elevators & Escalators.
3. Treadmills used in the gym.
4. Medical applications.
5. CNC machines.
6. Robotic arms.

Specification

Technology IGBT
Input Voltage 230V /415V AC (+/- 15%)
Input Frequency 50 Hz (+/- 5%)
Output Frequency 50 Hz (+/- 0.5%)
Output Voltage 415V AC (+/- 3%)
Load power Factor 0.8 to 1 lagging
Inverter Efficiency > 90%
Output Wave form Pure Sine Wave
Harmonic Distortion Less than 3% with linear load
Overload <105% continuous 105% to 200% for 30 Sec. >200% Inverter Trips
Battery Voltage 72V/96V/120V/180V/240V/360V DC
Indications Mains ON, Inverter ON, Battery Low, Overload, Battery Bar graph, Load Bar Graph
Audible Alarm Mains Fail @15 sec Battery Low pre-alarm at 80% of discharge
Protections Input single phasing / Phasing Reversal, Battery over / under voltage, output Over/ Under voltage, Output Overload, Output short circuit
Meter provided Output voltage /Microprocessor based Digital LCD metering for multiple parameters
Changeover Electro-mechanical / Static Switch
Backup time 10 min to 10 Hours
Operating Temperature 0 deg C to 50 deg C
Model 6 KVA; to 100 KVA,/td>
Humidity Max 95%, Non-condensing
Acoustic Noise Less than 45 dB at 1 Meter
