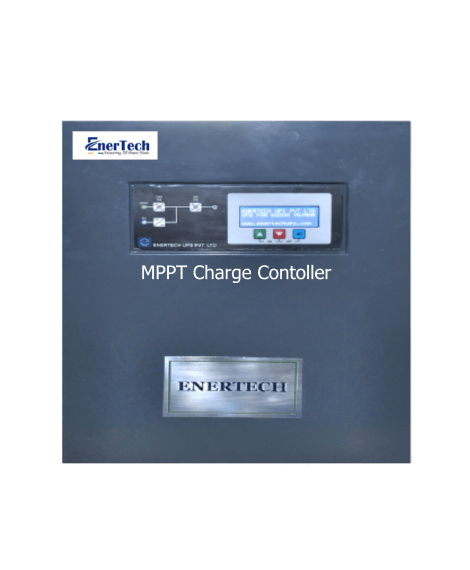

MPPT Solar Charge Controller

Rating48V – 600V upto 500Amps
MPPTWide MPPT voltage window
TechnologyHigh frequency buck/boost technology
SwitchingIGBT based switching for high reliability
Battery ChargingTemperature based charging for VRLA/NICD/LMLA batteries
Display SettingInteractive front LCD for settings
ControlMODBUS monitoring and control
BMSBMS handshake with Lithium batteries
FootprintLow footprint
MonitoringGSM/Wifi monitoring

Description

MPPT or Maximum Power Point Tracking is an algorithm that includes charge controllers used for extracting maximum available power from the PV module under certain conditions. The voltage at which the PV module can produce maximum power is called ‘maximum power point’ (or peak power voltage).

The major principle of the MPPT charger is to extract the maximum available power from the PV module by making them operate at the most efficient voltage (maximum Power Point). That is to say: MPPT checks output of the PV module compares it to battery voltage then fixes what is the best power that PV module can produce to charge the battery and converts it to the best voltage to get the maximum current into the battery. It can also supply power to a DC load, which is connected directly to the battery. When the battery is deeply discharged: the MPPT charger can extract more current and charge the battery if the state of charge in the battery is low.

An MPPT solar charge controller is embedded with P&O (perturb and observe) algorithm to maximize the amount of power going into the battery or power delivered to load from the PV module. MPPT is a DC to DC converter which operates by taking DC input from PV module, changing it to high switching DC and converting it back to a suitable DC voltage and current to exactly match the PV module to the battery

How MPPT Solar Charge Controller Works?

The major principle of MPPT is to extract the maximum available power from the PV module by making them operate at the most efficient voltage (maximum Power Point). That is to say: MPPT checks output of PV module compares it to battery voltage then fixes what is the best power that PV module can produce to charge the battery and converts it to the best voltage to get the maximum current into the battery. It can also supply power to a DC load, which is connected directly to the battery. When the battery is deeply discharged: MPPT can extract more current and charge the battery if the state of charge in the battery is lowered.

An MPPT solar charge controller is the charge controller embedded with the MPPT algorithm to maximize the amount of current going into the battery from the PV module. MPPT is DC to DC converter which operates by taking DC input from the PV module, changing it to AC and converting it back to a different DC voltage and current to exactly match the PV module to the battery.

Why choose Enertech Solar Charge Controller?

As Enertech is an innovative manufacturer of solar charge controller, it has been successful in equipping its charge controlling devices with an instant response system that uses feedback mechanisms to enhance the device’s ability to correct voltage flow automatically.

Features

  • Advance microprocessor control
  • Buck regulator wide input range
  • Maximum Power Point Tracking (MPPT)
  • Reverse polarities protection of PV
  • Battery overcharge and over discharge protection

Specification

Charger Peak Efficiency95%
OP Current40A/60A/80A/100A/150A/200A (customizable)
Duty CycleContinuous
Operating Temperature>0-50 Deg.Celsius
Storage Temperature-10 Deg.Celsius to 55 Deg.Celsius
Humidity95% (Non Condensing)
Enclosure ProtectionIP 20
CoolingForced Air Cooling
ColorBLUE / GRAY
Dimensions250mm X 350mm X 450 mm
Weight20-25 Kgs. approx
MeteringSolar Voltage, Solar Current Solar Power , Battery Voltage, Battery Current
