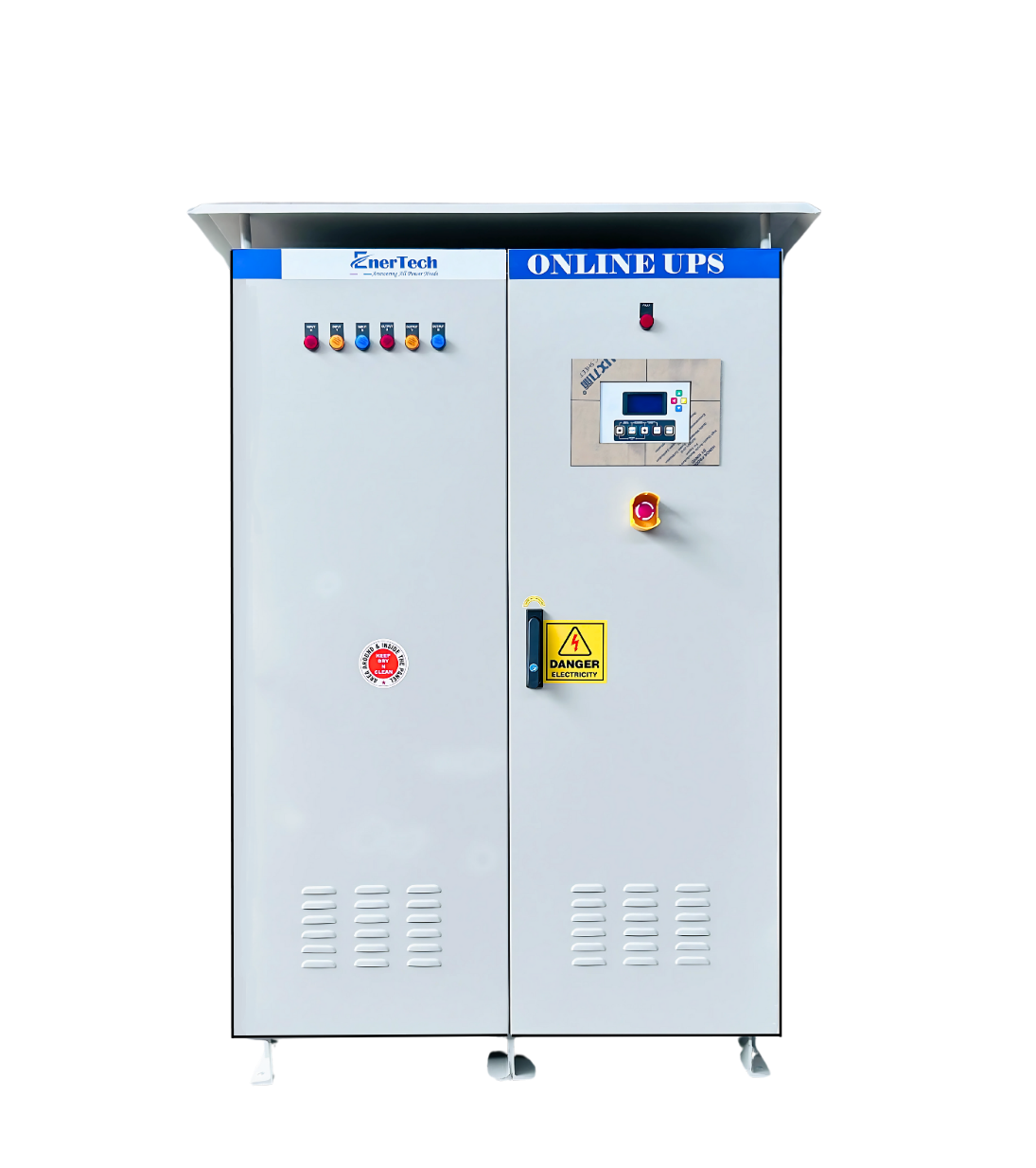

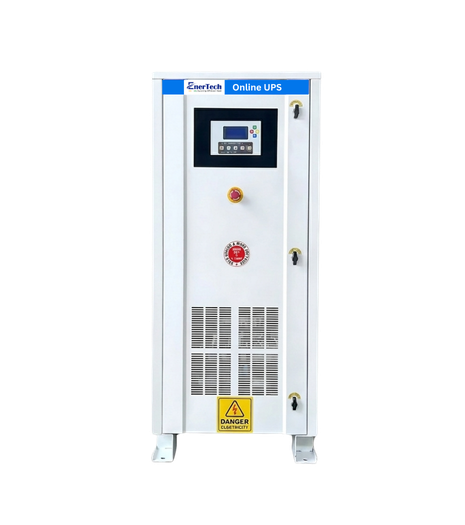

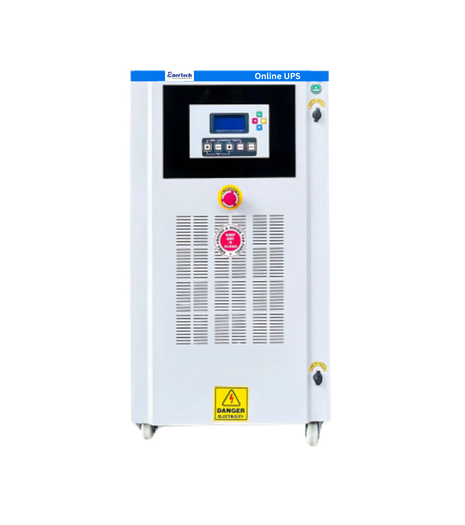

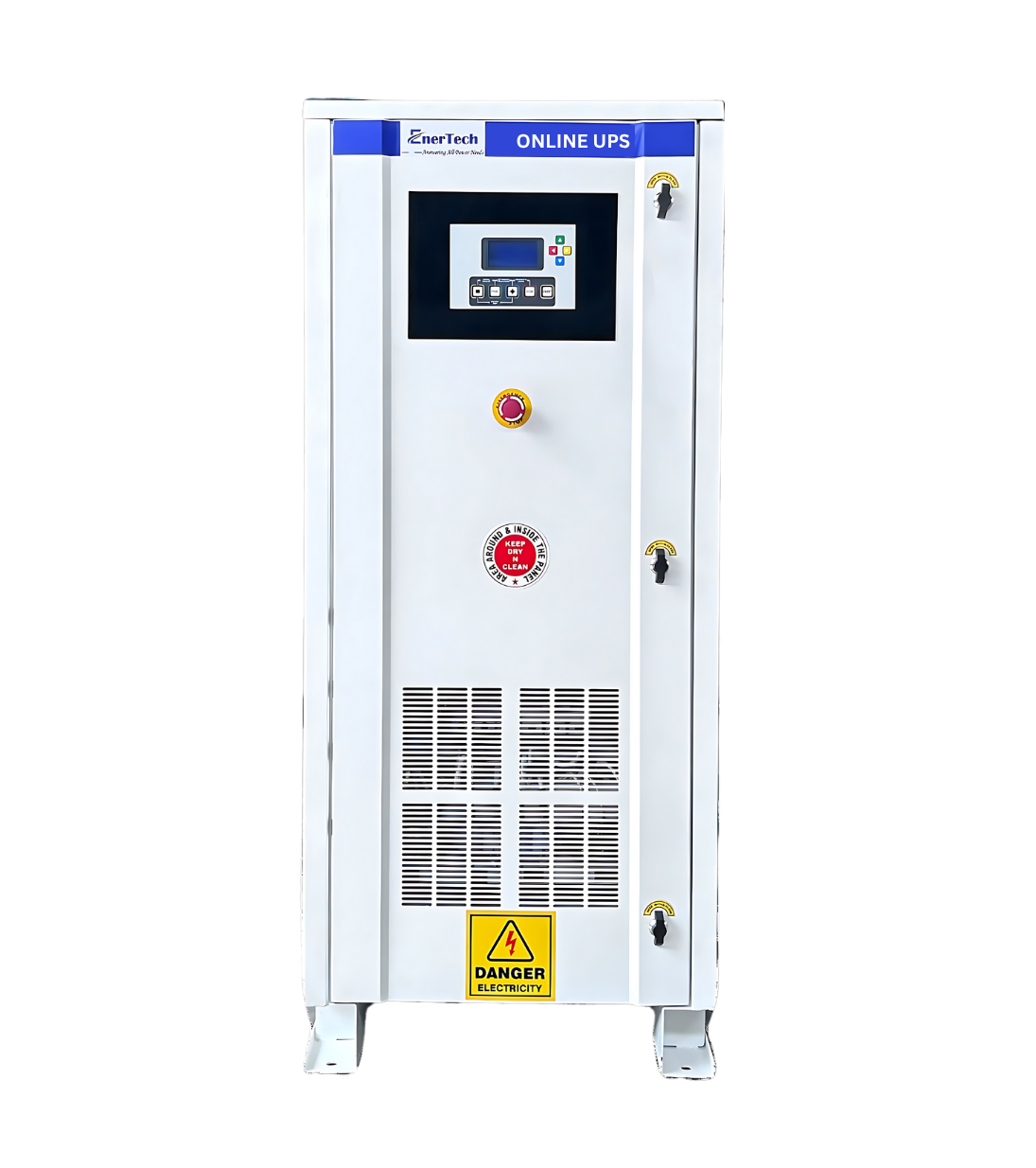

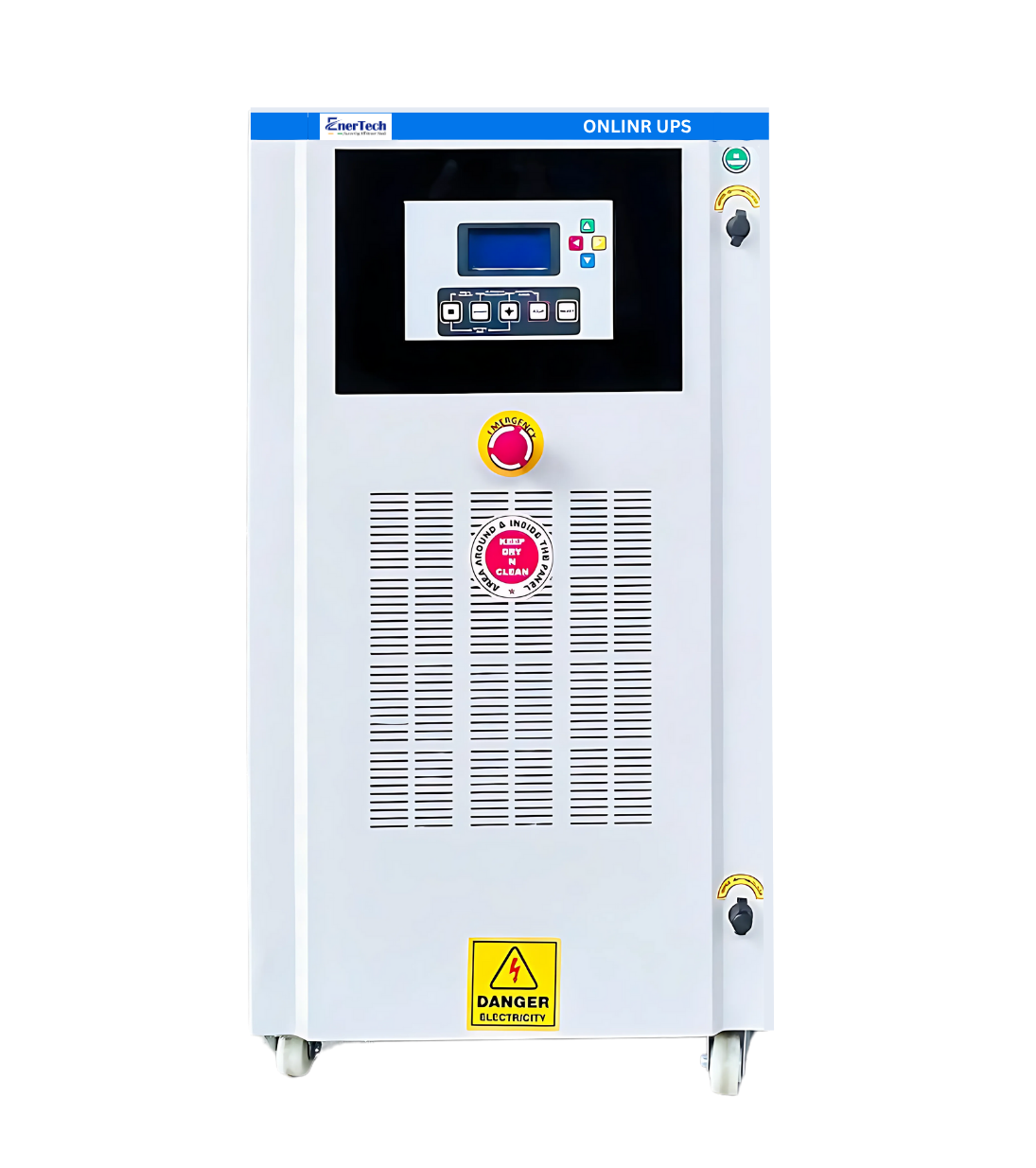

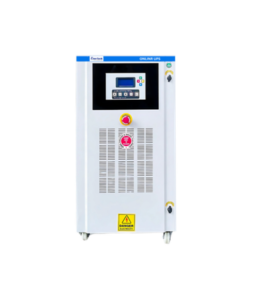

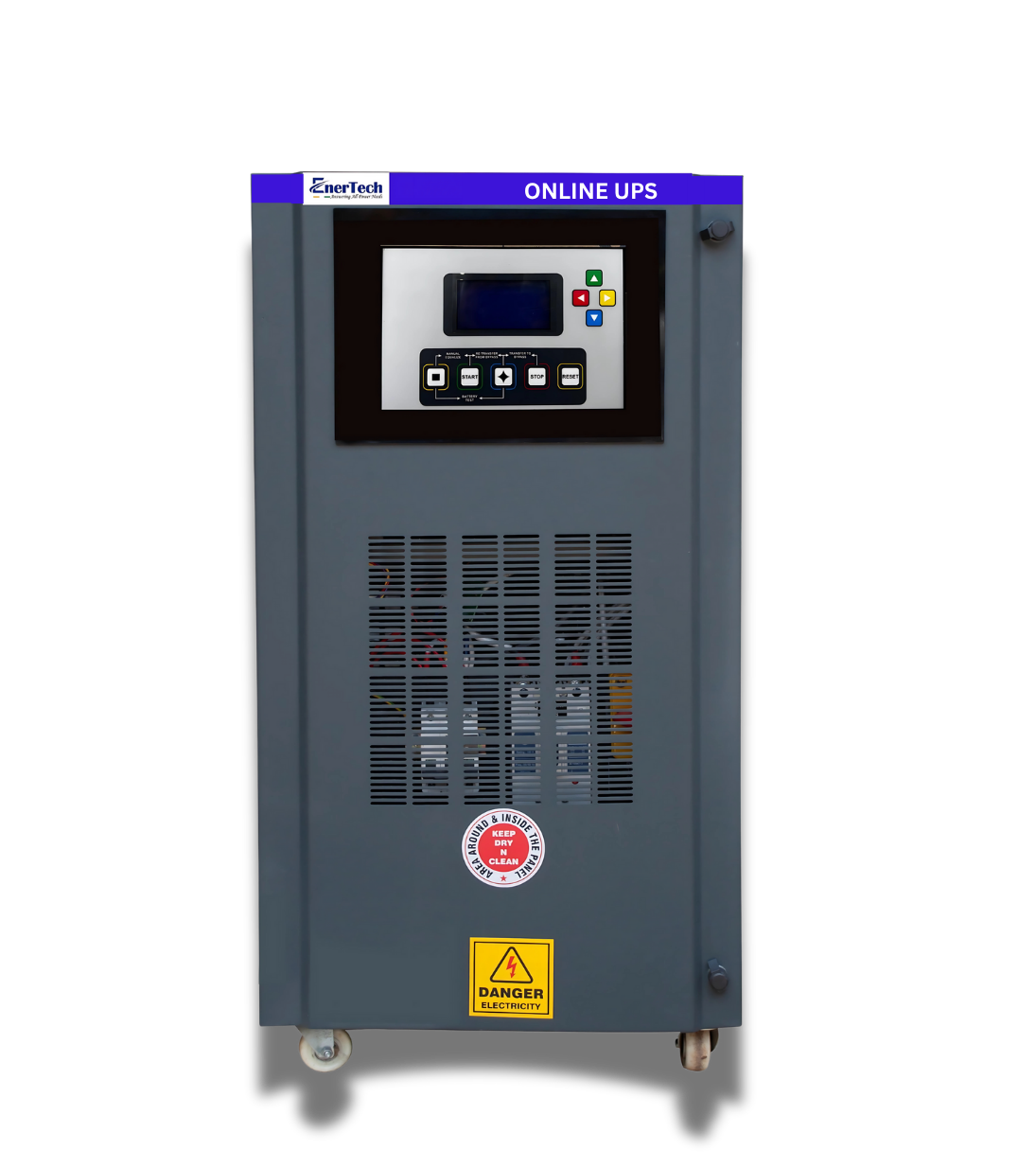

Online UPS 1-1 Phase

Range5KVA to 10KVA
Phase1-1 Phase
Display32 bit DSP based design
ModeContinuous 100% Duty
PowerIGBT rectifier
DesignVector Modulated Inverter Control Design.
InteractiveInteractive front LCD to do all settings via display
ControlMODBUS control for handshaking

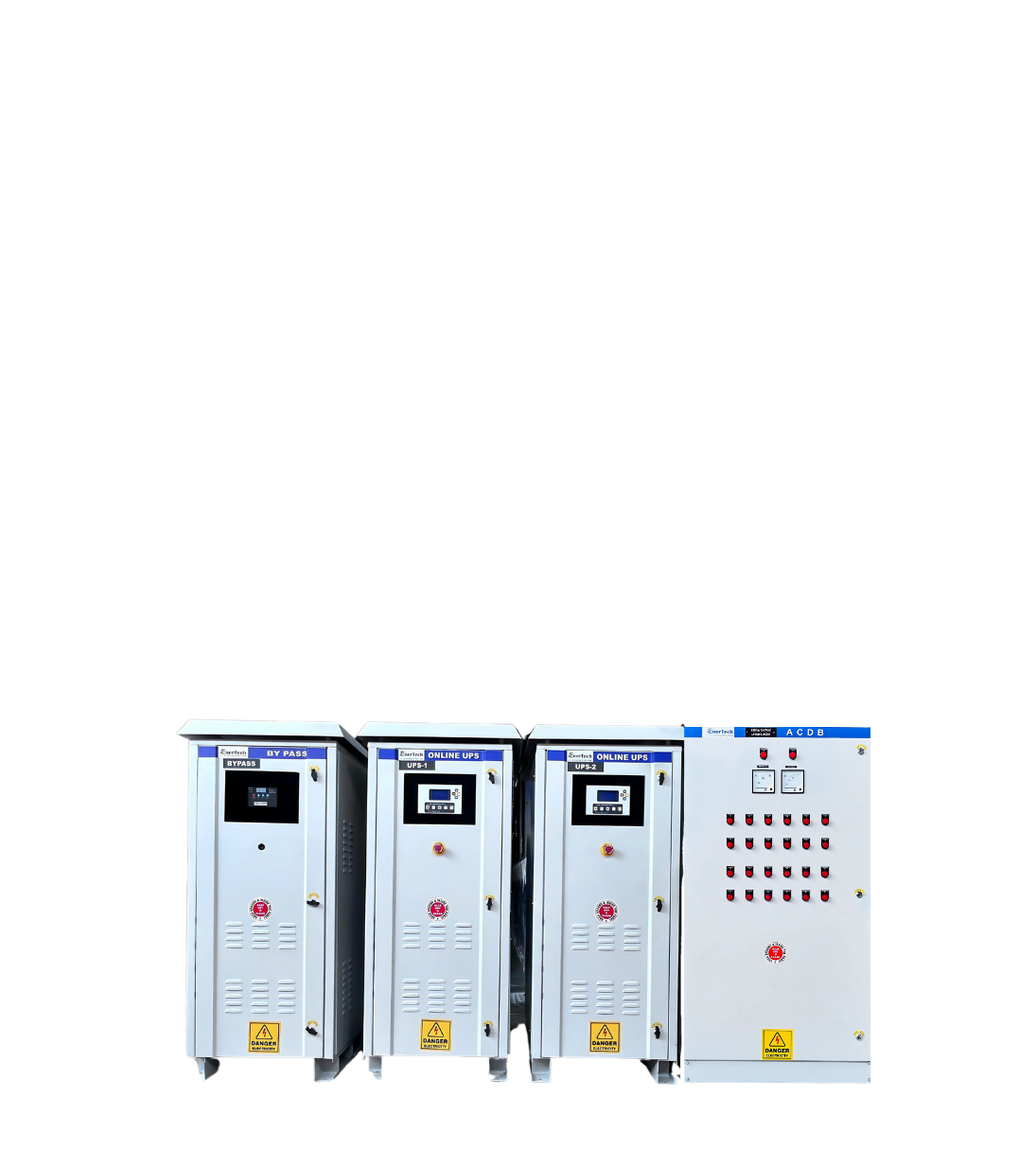

RedundancyParalleling option
MonitoringRemote monitoring using GSM/RS-485



Description

Enertech is a leading brand of UPS manufacturers in India as well as one of the best online ups suppliers. Our range of Online UPS Consists of New Generation Microprocessor-based High-Frequency Double Conversation. Technology. The Double Conversation Technique is able to support the connected equipment with a continuous power supply

The Key Electrical appliances will not be affected by unstable grid conditions, Power failure, Frequency variation, Harmonic distortion, and other abnormalities

Whenever the Grid / Mains supply fails or restores, there will be an unnoticeable transfer time, hence the connected equipment will run uninterruptedly.

With its Input Power factor correction, the Power Factor could reach up to 0.9 at full load thus excellent power quality is ensured.

Features

  • Double conversion technology is used in this model
  • A Low input current distortion level with high efficiency
  • Advanced network and mobile connectivity
  • Have an active input power factor correction
  • Have got a built-in galvanic isolation transformer for reducing the common mode noise.
  • IGBT based design for reduced power consumption
  • Hot standby and load sharing mode for 24×7 operation
  • Have SNMP/MODBUS connectivity

Specification

Input
DC Voltage170 – 260 V
Input Frequency50.0 Hz (±3% )
Input Power Factor0.8 to 0.9
Output Voltage
Nominal Output Voltage230.0 ± 2%
WaveformPure Sinewave
Frequency50 Hz (± 0.5%)
THD3%
Crest Factor3:1
Inverter TechnologyDouble conversion, Microprocessor based IGBT, PWM Technology
Overload Capacity125% for 60 sec, 150% for 10 sec
Change Over Time0 sec
Battery
Nominal Battery Voltage VDC96 / 120 / 180 / 192 V
TypeSealed Maintenance Free (SMF-VRLA) / Lead Acid -Tubular
ProtectionDC over, DC under, Short Circuit, Overload, AC under, AC over
Indication
LCD & LEDMains ON, UPS ON, Battery Percentage, Load Percentage, AC under, DC under, AC over, Overload
MeteringInput V , Output V , Input Frequency , DC V , Batt I , Input I , Output I
General
Efficiency> 90% to 93% (typical)
Noise (above ambient)< 50 db at 1 mtr
CoolingForced Air Cooling
CommunicationRS 232 / GSM
