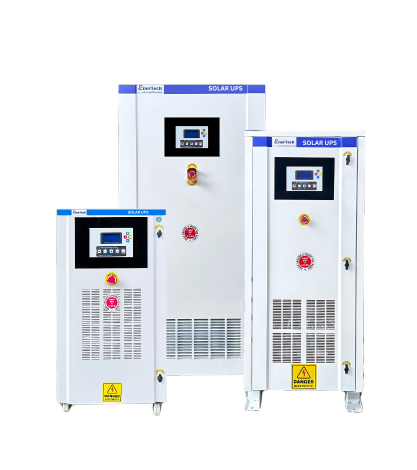

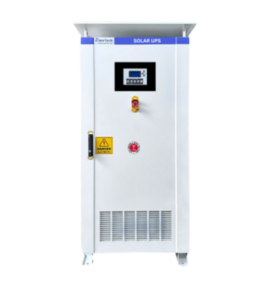

Solar Online UPS 3-1 Ph

Range 5KVA to 600KVA
Phase 1-1 | 3-1 | 3-3 Phase
Display 32 bit DSP based design
Mode Selectable priority SBG/SGB
Power Factor IGBT rectifier with PF >0.9
Design Custom make MPPT design
Indication Interactive front LCD to do all settings via display
MPPT Charger High efficient MPPT charger
Other Option Higher Amp Grid charger option
Monitoring Remote monitoring using GSM/RS-485

Description

Product DescriptionEnerTech Solar Online UPS is a perfect choice for industries like the manufacturing industry, healthcare, automotive, pharmaceutical, renewable energy plants, etc. The UPS has a contemporary design and a 32-bit DSP-based design along with a selectable priority. The solar online UPS allows a steady flow of electricity and smooth functioning even during major power breakdowns. They function smoothly even when exposed to a harsh environment and varying temperatures.
These solar UPS are designed especially to handle critical loads and save your battery life. It
automatically connects when the power is cut off and at the same time also improves energy
efficiency.
Working of Solar Online UPSThe solar UPS is fully integrated and provides an end-to-end power supply for industries and other areas where there is a high demand for electricity. The pure sine wave output with low THD of the inverter ensures efficiency. The MPPT based Solar UPS allows high performance even when monitored remotely using MODBUS, Ethernet, and RS232. The Solar online UPS by EnerTech can function even in different environmental conditions, like an altitude of 1000 meters above sea level and in places where the temperature is as low as 10° celsius to as high as 55° celsius, because of the inbuilt isolation transformer. The battery is designed in such a way that it allows sufficient backup during the night. There are three modes available- VFD mode, Grid Export Mode, and AC mode and the GRID export mode has the option to enable or disable. The solar online UPS has an output voltage of 415V AC +-10% in grid export mode, 0- 415V AC +-2% in VFD, and 415V in AC mode. The output frequency varies in VFD but in the AC mood and grid export the frequency is approximately 50hZ.
The EnerTech UPS is an IGBT-based Solar Online UPS and parallel configuration. The solar UPS has a selectable priority of SBG/SGB. You can easily adjust the settings using the front LCD like grid voltage, current, frequency, PV voltage, battery status, etc. When there is excess solar energy then the inverter works on solar power and the rest of the solar energy is used to charge the batteries. When there is an unavailability of solar energy, the entire load works on the grid via a grid charger. During the absence of grid supply, UPS shifts its load to use the buffer battery backup. Solar UPS has a pre-alarm set up for low battery and overload. The batteries have a discharge level of 75% and 25% as a buffer.

Why EnerTech Solar Online UPS (3Ph-1Ph)?
The Solar Online UPS (3Ph-1Ph) by EnerTech is approved by MNRE and is indigenous. We are
one of the top UPS suppliers in India. These solar UPS are one of the few UPS, which are approved
to work even in extreme climate conditions and are environmentally friendly as they produce less
sound and have been accredited by IEC- 60068 for environmental tests and IEC- 61683 for efficiency. We have service offices in various cities including Hyderabad, Chennai, Coimbatore, Bangalore, Mumbai, Bhopal, Ahemdabad, and other metro cities. Our UPS are exported to African and Asian countries. We provide user-friendly and reliable power solutions with customizable options. It is one of the most preferred solar online UPS.



Click here for Solar Online UPS 1-1 Ph

Features

  • MPPT (Maximum Power Point Tracking design)
  • DSP based technology
  • PFC based IGBT grid charger up to 100AMP capacity & parallel configuration is possible for higher ratings grid charger & MPPT controller ( concord/atlas)
  • Pure sine wave output with low THD
  • Pulse by pulse current limiting with auto reset resulting in efficient overload & short circuit protection
  • DC reverse polarity & battery deep discharge protection
  • Inbuilt galvanic isolation transformer
  • Advanced remote monitoring software(optional)
  • LCD display for metering input & output parameters
  • LCD Metering- PV voltage, current, KW, KWH, Grid voltage, current, frequency, battery voltage, status %
  • Buffer for battery backup in emergency
  • Power quality Audit / Scheduled shutdown / digital & graphical representation of parameter (optional)

Specification

Grid Charger
Grid Frequency Sync Range 50Hz ± 6%
Charger Peak Efficiency Higher than 90%
Max Grid Import Power Capacity Double of Inverter capacity dependent on battery charging current
Max Batt Amp (Charging) 5A to 200A selectable
Self Consumption Lower than 4%
Recommended DG/GRID Capacity Double of Inverter Capacity
Solar Charge Controller
Charge Controller Type MPPT
Charger Topology BUCK
No of MPPT Channels 1
Max Battery Amps during PV charging Full Capacity in Boost Mode / Current Control in Float Mode as per Battery AH
Battery Type Supported LMLA, VRLA, SMF, Ni-Cd: Charging Profile can be configured as per the battery requirement
Peak Charging Efficiency Higher than 94% Upto 98%
Inverter
Output Frequency 50Hz ± 0.5%
Voltage Regulation(Stand Alone) ±2%
Frequency Regulation(Stand Alone) ±0.5Hz
THD THD less than 4%
OUTPUT Waveform Pure Sine Wave
Galvanic Isolation Inbuilt Isolation Transformer at Inverter Output
Output Power Factor 0.8lagging
Peak Efficiency (Full Load) Higher than 75%
Overload capacity 125% FOR 60 SEC, 150% FOR 5 SEC / Can be customized
DG Compatibility Available
Auto Bypass feature Available
Grid Export Mode Available, Enable/Disable Options available
Anti Islanding Function Available, In Compliance with IEC 62116
Compatible IEC standards IEC -61683:1999- As per MNRE Requirement
Indication
LCD Display Parameters INPUT GRP | Voltage | Current | Frequency
Configuration
Battery Buffer Setting Selectable from 25%,50%,75%
MPPT Modes 2
Input-Grid
Input Voltage Range 415V AC ± 10% , 3Ph, 3W
Nominal Frequency 50 Hz (± 6%)
Input-Solar
VOC Range 0 – 900VDC
OUTPUT – VFD
Output Voltage 0- 415V AC ± 2 %, 3P, 3W
Output Frequency Variable
Duty Continuous
OUTPUT – AC MODE
Output Voltage 415V AC, 3P, 3W
Output Frequency 50hZ
Duty Continuous
OUTPUT – GRID EXPORT
Output Voltage 415V AC +-10%, 3P, 3W
Output Frequency 47-53
Anti Islanding Function Available
Duty Continuous
CONFIGURATION
Modes Available VFD Mode, AC MODE, GRID EXPORT
GRID Export Mode Enable / Disable Option Available
ENVIRONMENTAL
Acoustic Noise Level from 1 m ≤ 65 dB
Operating Temperature 0 to 40 Deg C
Storage Temperature -10 Deg C to 60 Deg C
Relative Humidity Up to 95 % (Non-Condensing)
Altitude < 1000 meter above sea level
PHYSICAL
Enclosure Protection Grade IP 20
Enclosure Thickness Frame 2.0mm & all covers 1.6mm
Cooling Forced Air
Colour RAL 7032 / RAL 7016
Cable Entry Bottom
CONNECTIVITY
Communication (all optional) RS 232 or Rs485, Modbus or GSM Connectivity or Wif
Monitoring (all optional) ENERLOG (Remote Monitoring Solution)
